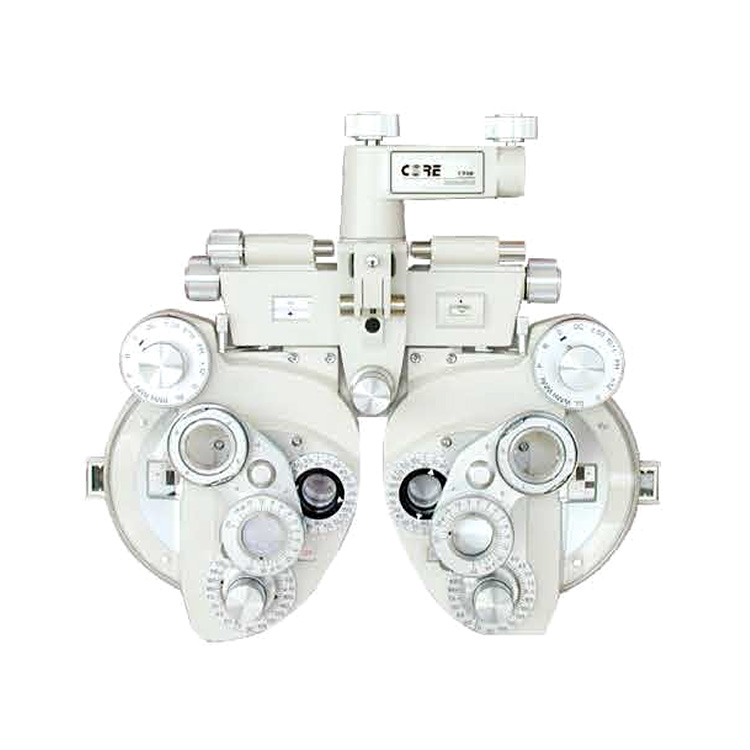

Features:

Adopting concentrated operation and large scale and improving performance. Automatic connection between cross-cylinder lens and lens coordinates.



Specifications:

  1. Sphere power:
    Range: +16.75 to -19.00 diopters
    Step: 0.25 diopters
  2. Cylinder power
    Range: 0.00 to -6.00 diopters (0.00 to -8.00 diopters with additional lens of -2.00 diopters)
  3. Step: 0.25 diopters
  4. Cylinder axis: 0 to 180°, 5° steps
  5. Cross cylinder: +0.25 diopters
  6. Rotary prisms: 0 to 20, 1 step
    Auxiliary lens dial
    (O)-Open aperture (two positions)
    (R)-Retinoscopic lens, +1.50D
    (P)-Polarizing lens 45° -left eye, 135° -right eye
    (WMV) or (RMV)-Maddox rod, vertical white-left eye, red-right eye
    (WMV) or (RMV)-Maddox rod, horizontal white-left eye, red-right eye
    (RL)-Red lens
    (+0.12)-+0.12D sphere
    (PH)-Pin hole
    (10 L) or (6 U)-10 base-in-left eye
    6 base-up-right eye
    (Dissociating prisms)(+.50)-+0.50 fixed cross cylinder
  7. (OC)-Occluder
  8. PD adjustment: 48-75MM, 1MM steps
  9. Standard accessory lenses: Two-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening
    Standard accessories: 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses
  10. Dimensions: 31.8*29.3*9.6(CM)
  11. Net weight: Approx 4.5KGS
Weight4500 g
Dimensions31.8 × 29.3 × 9.6 cm
