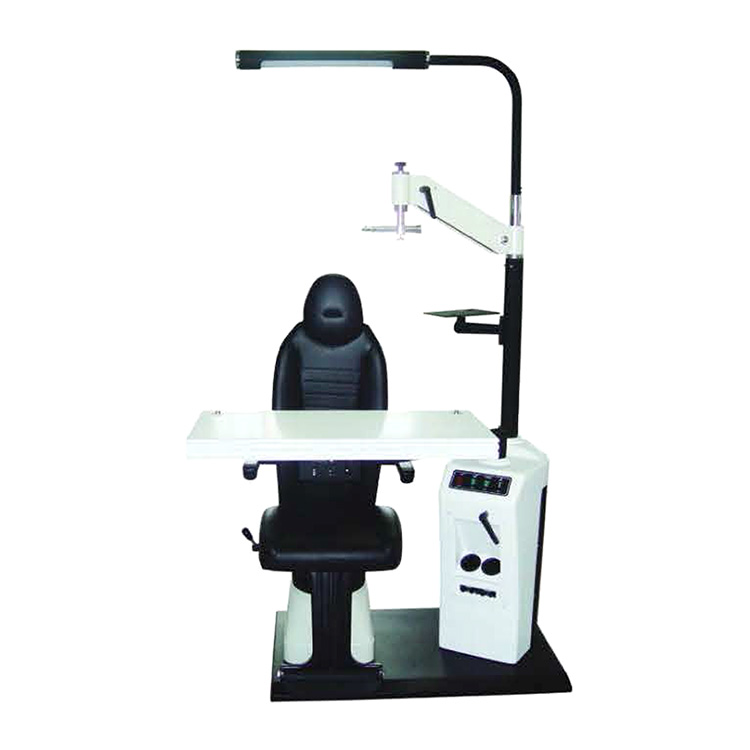

• This ophthalmic unit with smart design, special table structure, save space, use conveniently, one of ideal unit for foreign users.


  1. Unit Size: 1100MM x 1000MM x 2110MM
  2. Table Size: 840MM x 405MM /670x 400MM
  3. Table rotation range: 90° (stop automatically or manually)
  4. Table movable range: 400MM
  5. Chair rotation range: 60°
  6. Chair up and down range: 55CM -66CM
  7. Chair loading ability: 150KGS
  8. Swing arm oscillation angle: 30°
  9. Swing arm rotation angle: at any random point
  10. Chart projector backrest up and down movable range: 200MM
  11. Input Voltage: AC220V/AC11OV
  12. Lamp: 16W, AC220V/AC110V
  13. Fuse: 5A, AC250V
  14. Unit weight: 95KGS

Alternative colors:

Weight95000 g
Dimensions194 × 140.5 × 251 cm
